TV Mounting Coast Huntington Beach: Game-Day Multi-TV Walls in Huntington Beach
TV Mounting Coast Huntington Beach covers multi-TV walls in Huntington Beach homes — two, three or four screens on one wall of a game room, a converted garage or a family room, for watching several games at once or gaming side by side — laid out with even spacing, matched heights and a single cable route.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
Common layouts
| Layout | Screens | Wall width needed (55 in TVs) | Notes |
|---|---|---|---|
| Side by side | 2 | About 10–11 ft | Easiest to wire; both at eye level |
| Center plus two sides | 3 | About 15–16 ft | Main game in the middle |
| Two by two | 4 | About 10–11 ft, tall wall | Upper row tilted down |
| Big center, small above | 2–3 | About 8 ft | One large screen, smaller ones for other games |
Planning before drilling
- Every TV's width, height and VESA pattern are listed.
- Studs across the whole wall are marked.
- The layout is taped full size on the wall and checked from the couch.
- Brackets with sliding adapters are chosen where a stud does not fall under a screen's center.
- Power and HDMI routes are drawn before the first hole.

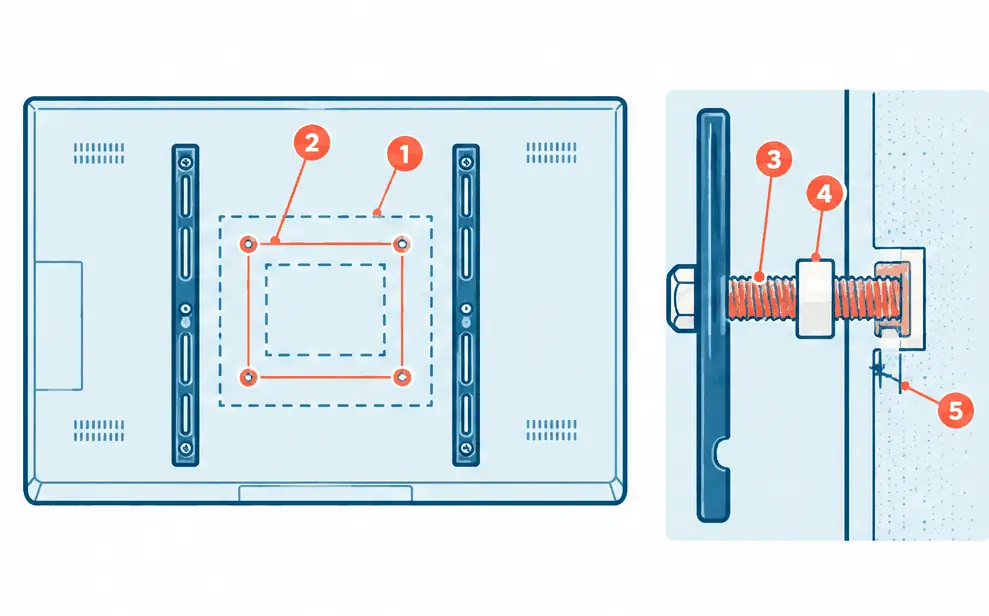

What the numbers show
- Hole pattern The four holes form a rectangle measured in millimetres, such as 400 × 400 or 600 × 400 on large sets.
- Nested patterns Universal brackets have slots that cover several patterns; the dashed rectangles show smaller and larger ones.
- Bolt thread Most large TVs take M6 or M8 bolts; the right size is in the TV manual.
- Spacer Spacers bridge curved or recessed backs so the bracket sits flat without bending the panel.
- Bolt length A bolt that is too long can bottom out inside the TV; it threads in fully without forcing.
Power and signal for several screens
Each screen needs power and a source. A single in-wall run behind the screens to one cabinet, or a raceway along the top or bottom edge, keeps the wall clean; streaming sticks at each TV cut the number of cables down. Several TVs and a game console can overload one outlet strip; the circuit's other loads are checked.
A good TV wall reads as one piece of furniture, not four separate jobs.
Game-Day Multi-TV Walls — common questions
How much does a two-TV wall cost?
Each TV follows its own base range in 2026, so two 32–49 inch TVs start around $218–$298; hidden wiring adds $99–$169 per run.
Can a TV wall go in the garage?
Yes, on studs, block or a backer board, with the screens placed above head height in a gym area.
Game-Day Multi-TV Walls: check availability and price range
Bookings aren't open yet — tap what fits your TV and wall and get a typical Huntington Beach price range right here. Typical Huntington Beach prices for one TV, labor only unless an option says otherwise. This is a market estimate, not a quote.
